Juniper JN0-351 Exam Syllabus Topics:
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
| Topic 5 |
|
| Topic 6 |
|
| Topic 7 |
|
| Topic 8 |
|
NEW QUESTION # 27

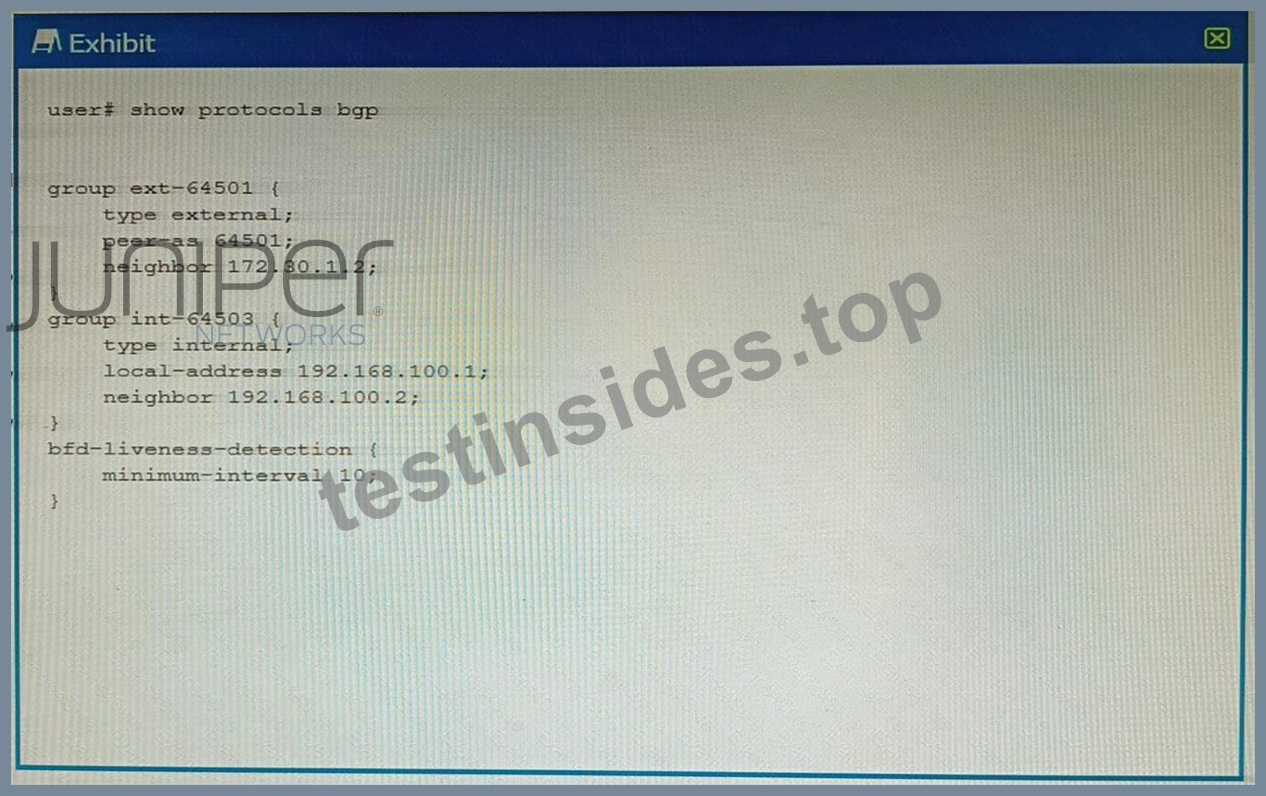

Exhibit
Your BGP neighbors, one in the USA and one in France, are not establishing a connection with each other.
Referring to the exhibit, which statement is correct?
- A. The BFD liveness must be configured on the BGP group.
- B. The BFD liveness is set too low.
- C. The BFD liveness must be configured on the BGP neighbor.
- D. The BFD liveness is set too high.
Answer: C
Explanation:
Explanation
The exhibit shows the configuration of BFD liveness detection for BGP at the global level, which applies to all BGP neighbors by default1. However, this configuration does not specify the session mode, which determines whether BFD uses single-hop or multihop mode to communicate with a neighbor2.
For single-hop BGP neighbors, which are directly connected on the same subnet, the session mode can be either automatic or single-hop. For multihop BGPneighbors, which are not directly connected and require multiple hops to reach, the session mode must be multihop2.
Since your BGP neighbors are in different countries, they are likely to be multihop neighbors. Therefore, you need to configure the session mode as multihop for each neighbor individually at the [edit protocols bgp group group-name neighbor address bfd-liveness-detection] hierarchy level2. For example:
protocols { bgp { group usa { neighbor 192.0.2.1 { bfd-liveness-detection { session-mode multihop; } } } group france { neighbor 198.51.100.1 { bfd-liveness-detection { session-mode multihop; } } } } } If you do not configure the session mode for multihop neighbors, BFD will use the default mode of automatic, which will try to use single-hop mode and fail to establish a BFD session with the remote neighbor2. This will prevent BGP from using BFD to detect liveliness and failover.
Therefore, the answer B is correct, as you need to configure the BFD liveness detection on the BGP neighbor level with the appropriate session mode for multihop neighbors.
NEW QUESTION # 28
You are concerned about spoofed MAC addresses on your LAN.
Which two Layer 2 security features should you enable to minimize this concern? (Choose two.)
- A. DHCP snooping
- B. static ARP
- C. IP source guard
- D. dynamic ARP inspection
Answer: A,D
Explanation:
A is correct because dynamic ARP inspection (DAI) is a Layer 2 security feature that prevents ARP spoofing attacks. ARP spoofing is a technique that allows an attacker to send fake ARP messages to associate a spoofed MAC address with a legitimate IP address. This can result in traffic redirection, man-in-the-middle attacks, or denial-of-service attacks. DAI validates ARP packets by checking the source MAC address and IP address against a trusted database, which is usually built by DHCP snooping1. DAI discards any ARP packets that do not match the database or have invalid formats1.
C is correct because DHCP snooping is a Layer 2 security feature that prevents DHCP spoofing attacks.
DHCP spoofing is a technique that allows an attacker to act as a rogue DHCP server and offer fake IP addresses and other network parameters to unsuspecting clients. This can result in traffic redirection, man-in-the-middle attacks, or denial-of-service attacks. DHCP snooping filters DHCP messages by classifying switch ports as trusted or untrusted. Trusted ports are allowed to send and receive any DHCP messages, while untrusted ports are allowed to send only DHCP requests and receive only valid DHCP replies from trusted ports2. DHCP snooping also builds a database of MAC addresses, IP addresses, lease times, and binding types for each client2.
NEW QUESTION # 29
Which two events cause a router to advertise a connected network to OSPF neighbors? (Choose two.)
- A. When a static route to the 224.0.0.5 address is created.
- B. When an OSPF adjacency is established.
- C. When an interface has the OSPF passive option enabled.
- D. When a static route to the 224.0.0.6 address is created.
Answer: A,B
Explanation:
A is correct because when an OSPF adjacency is established, a router will advertise a connected network to OSPF neighbors. An OSPF adjacency is a logical relationship between two routers that agree to exchange routing information using the OSPF protocol1. To establish an OSPF adjacency, the routers must be in the same area, have compatible parameters, and exchange hello packets1. Once an OSPF adjacency is formed, the routers will exchange database description (DBD) packets, which contain summaries of their link-state databases (LSDBs)1. The LSDBs include information about the connected networks and their costs2. Therefore, when an OSPF adjacency is established, a router will advertise a connected network to OSPF neighbors through DBD packets.
D is correct because when a static route to the 224.0.0.5 address is created, a router will advertise a connected network to OSPF neighbors. The 224.0.0.5 address is the multicast address for all OSPF routers3. A static route to this address can be used to send OSPF hello packets to all OSPF neighbors on a network segment3. This can be useful when the network segment does not support multicast or when the router does not have an IP address on the segment3. When a static route to the 224.0.0.5 address is created, the router will send hello packets to this address and establish OSPF adjacencies with other routers on the segment3. As explained above, once an OSPF adjacency is formed, the router will advertise a connected network to OSPF neighbors through DBD packets.
NEW QUESTION # 30

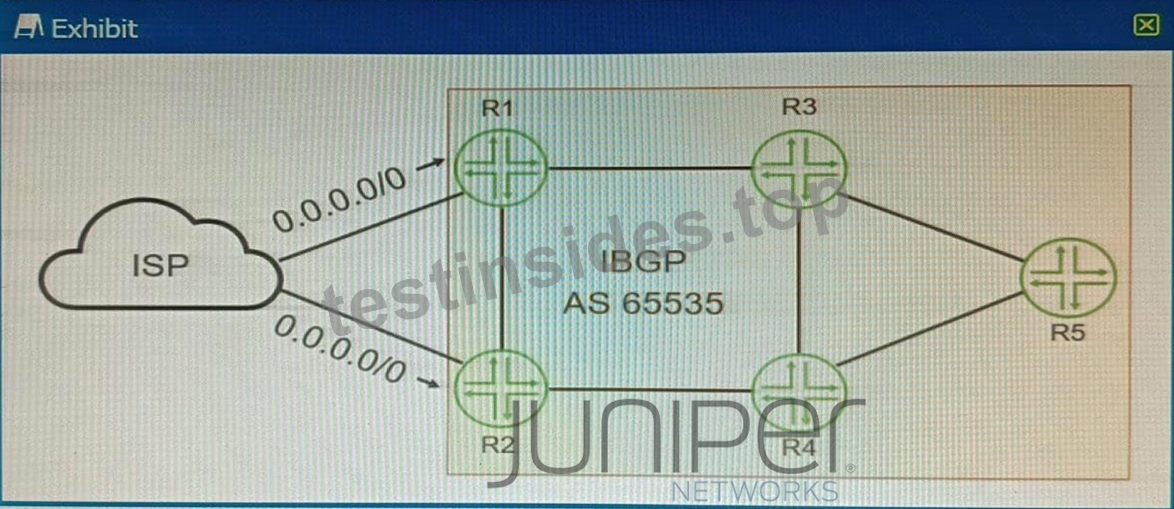

Exhibit
Your ISP is announcing a default route to both R1 and R2. You want your network routers to forward all Internet traffic through the R1 device Which BGP attribute would you use?
- A. MED
- B. origin
- C. local preference
- D. next-hop
Answer: C
Explanation:
Explanation
The BGP attribute that you would use to forward all Internet traffic through the R1 device is the local preference1.
The local preference is an attribute that is used within an autonomous system (AS) and exchanged between iBGP routers1. It is used to select an exit point from the AS1. The path with the highest local preference is preferred1. By setting a higher local preference for the routes received from R1, you can make R1 the preferred exit point for all Internet traffic1.
NEW QUESTION # 31
Which two statements are correct about tunnels? (Choose two.)
- A. IP-IP tunnels are stateful.
- B. BFD cannot be used to monitor tunnels.
- C. Tunnels add additional overhead to packet size.
- D. Tunnel endpoints must have a valid route to the remote tunnel endpoint.
Answer: C,D
Explanation:
Explanation
A tunnel is a connection between two computer networks, in which data is sent from one network to another through an encrypted link. Tunnels are commonly used to secure data communications between two networks or to connect two networks that use different protocols.
Option B is correct, because tunnel endpoints must have a valid route to the remote tunnel endpoint. A tunnel endpoint is the device that initiates or terminates a tunnel connection. For a tunnel to be established, both endpoints must be able to reach each other over the underlying network. This means that they must have a valid route to the IP address of the remote endpoint1.
Option D is correct, because tunnels add additional overhead to packet size. Tunnels work by encapsulating packets: wrapping packets inside of other packets. This means that the original packet becomes the payload of the surrounding packet, and the surrounding packet has its own header and trailer. The header and trailer of the surrounding packet add extra bytes to the packet size, which is called overhead. Overhead can reduce the efficiency and performance of a network, as it consumes more bandwidth and processing power2.
Option A is incorrect, because BFD can be used to monitor tunnels. BFD is a protocol that can be used to quickly detect failures in the forwarding path between two adjacent routers or switches. BFD can be integrated with various routing protocols and link aggregation protocols to provide faster convergence and fault recovery.
BFD can also be used to monitor the connectivity of tunnels, such as GRE, IPsec, or MPLS.
Option C is incorrect, because IP-IP tunnels are stateless. IP-IP tunnels are a type of tunnels that use IP as both the encapsulating and encapsulated protocol. IP-IP tunnels are simple and easy to configure, but they do not provide any security or authentication features. IP-IP tunnels are stateless, which means that they do not keep track of the state or status of the tunnel connection. Stateless tunnels do not require any signaling or negotiation between the endpoints, but they also do not provide any error detection or recovery mechanisms.
References:
1: What is Tunneling? | Tunneling in Networking 2: What Is Tunnel In Networking, Its Types, And Its Benefits? : [Configuring Bidirectional Forwarding Detection] : [IP-IP Tunneling]
NEW QUESTION # 32
Which statement is correct about the IS-IS ISO NET address?
- A. An ISO NET address must be unique for each device in the network.
- B. You can only define a single ISO NET address per device.
- C. An ISO NET address defined with a system ID of 0000.0000.0000 must be selected as the DIS.
- D. The Area ID must match on all devices within a L2 area.
Answer: A
Explanation:
An ISO NET address is a type of network address used by the IS-IS routing protocol. It identifies a point of connection to the network, such as a router interface, and is also called a Network Service Access Point (NSAP)1.
An ISO NET address consists of three parts: an area ID, a system ID, and a selector2. The area ID identifies the IS-IS area to which the device belongs. The system ID uniquely identifies the device within the area. The selector identifies a specific service or function on the device, such as routing or management2.
An ISO NET address must be unique for each device in the network, because it is used by IS-IS to establish adjacencies, exchange routing information, and compute shortest paths2. If two devices have the same ISO NET address, they will not be able to communicate with each other or with other devices in the network. Therefore, it is important to assign different ISO NET addresses to each device in the network.
NEW QUESTION # 33

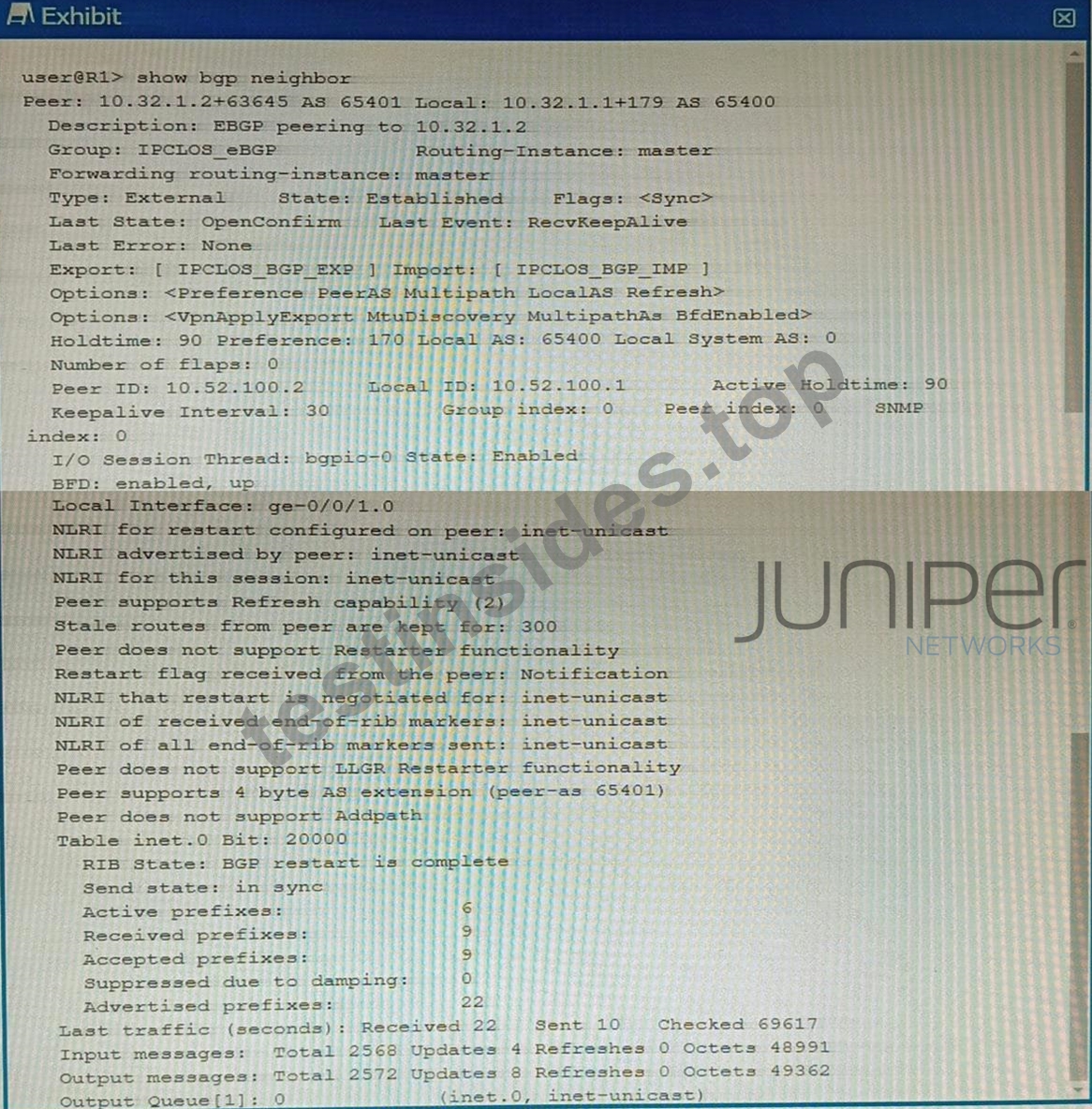

Exhibit
You are a network operator troubleshooting BGP connectivity.
Which two statements are correct about the output shown in the exhibit? (Choose two.)
- A. Peer 10.32.1.2 is configured for AS 63645.
- B. The routers are exchanging IPv4 routes.
- C. The R1 is configured for AS 65400.
- D. The BGP session is not established.
Answer: C,D
Explanation:
Explanation
Option B suggests that the BGP session is not established. This is correct because in the output, the state of the BGP session is shown as "Idle". In BGP, an "Idle" state means that the BGP session is not currently established1.
Option C suggests that R1 is configured for AS 65400. This is also correct because in the output, it's shown that the local AS number is 654001. The local AS number represents the Autonomous System (AS) number of the router on which you're checking the BGP session1.
NEW QUESTION # 34
You want to use filter-based forwarding (FBF) on your Internet peering router to load-balance traffic to two directly connected ISPs based on the source address.
Which two statements are correct in this scenario? (Choose two.)
- A. FBF uses the forwarding routing instance type.
- B. RIB groups are used to copy routes from the inet. o routing table.
- C. RIB groups are used to hide routes in the inet. 0 routing table.
- D. FBF uses the no-forwarding routing instance type.
Answer: A,B
Explanation:
Option B is correct. Filter-based forwarding (FBF), also known as Policy Based Routing (PBR), uses the forwarding routing instance type12.
Option C is correct. Routing Information Base (RIB) groups are used to copy routes from one routing table to another34. In the context of FBF, RIB groups can be used to copy routes from the inet.0 routing table34.
Option A is incorrect. FBF does not use the no-forwarding routing instance type15.
Option D is incorrect. RIB groups are not used to hide routes in the inet.0 routing table34. They are used to share or copy routes between different routing tables34.
NEW QUESTION # 35
After receiving a BGP route, which two conditions are verified by the receiving router to ensure that the received route is valid? (Choose two)
- A. The AS-path length is greater than 0.
- B. The next hop is reachable.
- C. The local preference is greater than 0.
- D. The loops do not exist.
Answer: B,D
Explanation:
B is correct because the loops do not exist is one of the conditions that are verified by the receiving router to ensure that the received BGP route is valid. A loop in BGP means that a route has been advertised by the same AS more than once, which can cause routing instability and inefficiency1. To prevent loops, BGP uses the AS-path attribute, which lists the AS numbers that a route has traversed from the origin to the destination2. The receiving router checks the AS-path attribute of the received route and discards it if it finds its own AS number in the list2. This way, BGP avoids accepting routes that contain loops.
C is correct because the next hop is reachable is one of the conditions that are verified by the receiving router to ensure that the received BGP route is valid. The next hop is the IP address of the next router that is used to forward packets to the destination network3. The receiving router checks the next hop attribute of the received route and verifies that it has a valid route to reach it3. If the next hop is not reachable, the received route is not usable and is rejected by the receiving router3. This way, BGP ensures that only feasible routes are accepted.
NEW QUESTION # 36
Which two BGP attributes must be supported by all BGP implementations and must be included in every update? (Choose two.)
- A. MED
- B. community
- C. next hop
- D. AS path
Answer: C,D
Explanation:
Explanation
BGP attributes are properties that BGP uses for route advertisement, path selection, and loop prevention1. There are four categories of BGP attributes123:
Well-known mandatory: Must be recognized by all BGP routers, present in all BGP updates, and passed on to other BGP routers123.
Well-known discretionary: Supported by all BGP implementations, and are optionally included in BGP updates1.
Optional transitive: May not be supported by all implementations of BGP1.
Optional non-transitive: May not be supported by all implementations of BGP1.
The well-known mandatory attributes must be supported by all BGP implementations and must be included in every update123. These include the AS path and next hop attributes23. Therefore, options A and C are correct.
NEW QUESTION # 37
Two routers share the same highest priority and start time.
- A. The router with the highest router ID becomes the DR
- B. The routers perform another DR election.
- C. In this situation, what is evaluated next when determining the designated router? The router with the lowest router ID become the DR.
- D. The router with the highest MAC address become the DR
Answer: A
Explanation:
According to the OSPF protocol, the designated router (DR) is the router that acts as the focal point for exchanging routing information on a multi-access network segment, such as a LAN1. The DR election process is based on the following criteria, in order of precedence1:
The router with the highest OSPF priority becomes the DR. The default priority is 1, and a priority of 0 means the router will not participate in the election.
If there is a tie in priority, the router with the highest router ID becomes the DR. The router ID is a 32-bit number that uniquely identifies a router in an OSPF domain. It can be manually configured or automatically derived from the highest IP address of a loopback interface or a physical interface.
If there is a tie in router ID, the router that was first to become an OSPF neighbor becomes the DR.
In your scenario, two routers share the same highest priority and start time. This means that they have equal chances of becoming the DR based on the first and third criteria. Therefore, the second criterion will be used to break the tie, which is the router ID. The router with the highest router ID will become the DR, and the other router will become the backup designated router (BDR), which is ready to take over the role of DR if it fails1.
NEW QUESTION # 38

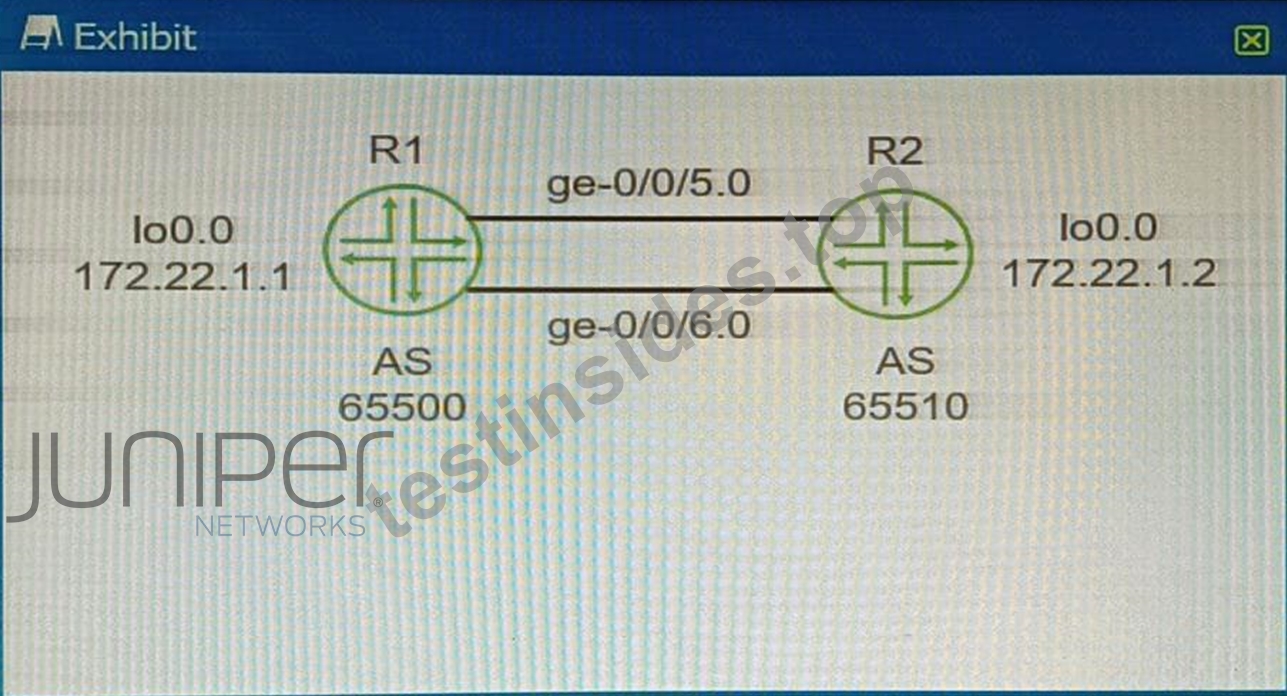

Exhibit.
You want to enable redundancy for the EBGP peering between the two routers shown in the exhibit. Which three actions will you perform in this scenario? (Choose three.)
- A. Configure BGP multihop.
- B. Configure a cluster ID.
- C. Configure an MD5 peer authentication.
- D. Configure loopback interface peering.
- E. Configure routes for the peer loopback interface IP addresses.
Answer: A,D,E
Explanation:
A is correct because you need to configure BGP multihop to enable redundancy for the EBGP peering between the two routers. BGP multihop is a feature that allows BGP peers to establish a session over multiple hops, instead of requiring them to be directly connected1. By default, EBGP peers use a time-to-live (TTL) value of 1 for their packets, which means that they can only reach adjacent neighbors1. However, if you configure BGP multihop with a higher TTL value, you can allow EBGP peers to communicate over multiple routers in between1. This can provide redundancy in case of a link failure or a router failure between the EBGP peers.
B is correct because you need to configure loopback interface peering to enable redundancy for the EBGP peering between the two routers. Loopback interface peering is a technique that uses loopback interfaces as the source and destination addresses for BGP sessions, instead of physical interfaces2. Loopback interfaces are virtual interfaces that are always up andreachable as long as the router is operational2. By using loopback interface peering, you can avoid the dependency on a single physical interface or link for the BGP session, and use multiple paths to reach the loopback address of the peer2. This can provide redundancy and load balancing for the EBGP peering.
C is correct because you need to configure routes for the peer loopback interface IP addresses to enable redundancy for the EBGP peering between the two routers. Routes for the peer loopback interface IP addresses are necessary to ensure that the routers can reach each other's loopback addresses over multiple hops2. You can use static routes or dynamic routing protocols to advertise and learn the routes for the peer loopback interface IP addresses2. Without these routes, the routers will not be able to establish or maintain the BGP session using their loopback interfaces.
NEW QUESTION # 39

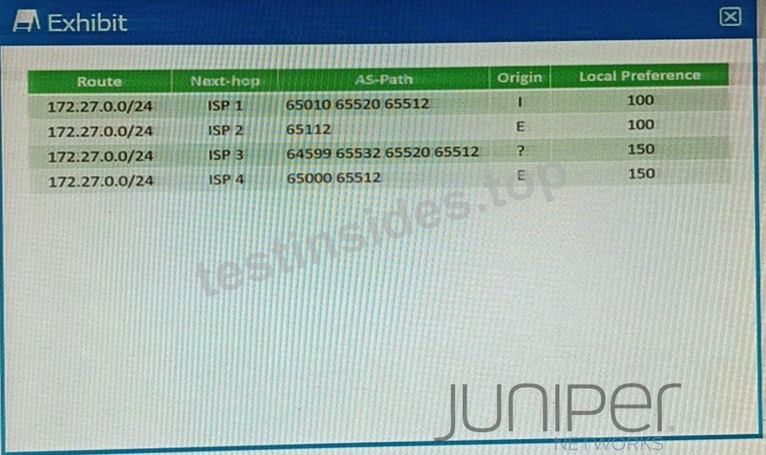

Exhibit
You are receiving the BGP route shown in the exhibit from four different upstream ISPs.
Referring to the exhibit, which ISP will be selected as the active path?
- A. ISP 3
- B. ISP 2
- C. ISP1
- D. ISP 4
Answer: D
Explanation:
Explanation
In BGP, the path selection process is based on a set of attributes1. The process starts by preferring the path with the highest weight, then the highest local preference, then the locally originated routes, and so on1. If all these attributes are the same, then it prefers the path with the shortest AS path1.
Referring to the exhibit, all four ISPs have the same weight, local preference, and origin1. However, ISP 4 has the shortest AS path1. Therefore, ISP 4 will be selected as the active path. So, option C is correct.
NEW QUESTION # 40
Which two types of tunnels are able to be created on all Junos devices? (Choose two.)
- A. STP
- B. GRE
- C. IP-IP
- D. IPsec
Answer: B,D
Explanation:
Explanation
Junos devices support various types of tunnels for different purposes12.
Option B is correct. Generic Routing Encapsulation (GRE) is a tunneling protocol that can encapsulate a wide variety of network layer protocols inside virtual point-to-point links over an Internet Protocol network1. Junos devices support GRE tunnels1.
Option D is correct. IPsec (Internet Protocol Security) is a protocol suite for securing Internet Protocol (IP) communications by authenticating and encrypting each IP packet of a communication session1. Junos devices support IPsec tunnels1.
Option A is incorrect. Spanning Tree Protocol (STP) is not a type of tunnel. It's a network protocol designed to prevent loops in a bridged Ethernet local area network2.
Option C is incorrect. While Junos devices do support IP-IP (also known as IP tunneling), it's not supported on all Junos devices1.
NEW QUESTION # 41
Which two mechanisms are part of building and maintaining a Layer 2 bridge table? (Choose two.)
- A. learning
- B. blocking
- C. listening
- D. flooding
Answer: A,D
Explanation:
Option B is correct. Flooding is a mechanism used in Layer 2 bridging where the switch sends incoming packets to all its ports except for the port where the packet originated1. This is done when the switch doesn't know the destination MAC address or when the packet is a broadcast or multicast1.
Option C is correct. Learning is another mechanism used in Layer 2 bridging where the switch learns the source MAC addresses of incoming packets and associates them with the port on which they were received23. This information is stored in a MAC address table, also known as a bridge table23.
Option A is incorrect. Blocking is a state in Spanning Tree Protocol (STP) used to prevent loops in a network2. It's not a mechanism used in building and maintaining a Layer 2 bridge table2.
Option D is incorrect. Listening is also a state in Spanning Tree Protocol (STP) where the switch listens for BPDUs to make sure no loops occur in the network before transitioning to the learning state2. It's not a mechanism used in building and maintaining a Layer 2 bridge table2.
NEW QUESTION # 42

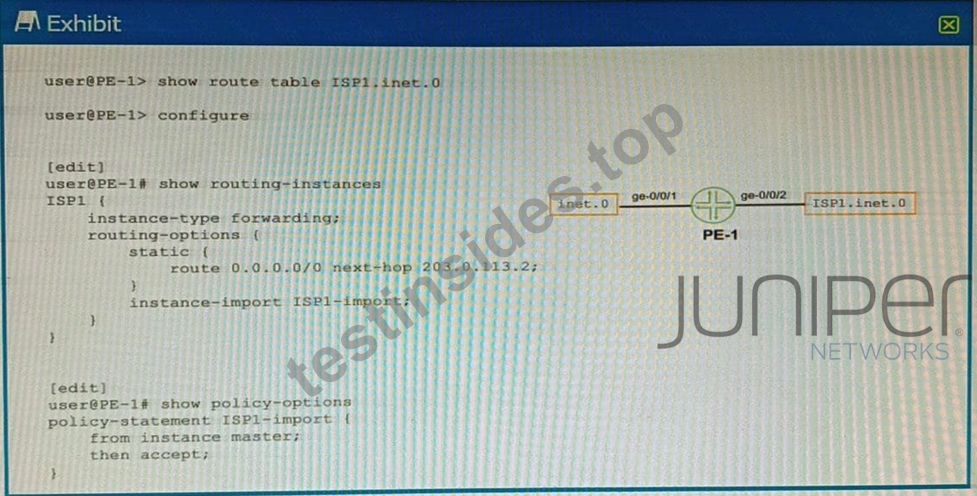

Exhibit.
The ispi _ inet. 0 route table has currently no routes in it.
What will happen when you commit the configuration shown on the exhibit?
- A. The inet. 0 route table will be imported into the ispi . inet. 0 route table.
- B. The ISPI . inet. 0 route table will be imported into the inet. 0 route table.
- C. The ISPI . inet. 0 route table will be completely overwritten by the inet. o route table.
- D. The inet. 0 route table will be completely overwritten by the ispi . inet. 0 route table.
Answer: A
Explanation:
Explanation
The configuration shown in the exhibit is an example of a routing instance of type virtual-router. A routing instance is a collection of routing tables, interfaces, and routing protocol parameters that create a separate routing domain on a Juniper device1. A virtual-router routing instance allows administrators to divide a device into multiple independent virtual routers, each with its own routing table2.
The configuration also includes a rib-group statement, which is used to import routes from one routing table to another. A rib-group consists of an import-rib statement, which specifies the source routing table, and an export-rib statement, which specifies the destination routing table.
In this case, the rib-group name is inet-to-ispi, and the import-rib statement specifies inet.0 as the source routing table. The export-rib statement specifies ispi.inet.0 as the destination routing table. This means that the routes from inet.0 will be imported into ispi.inet.0.
Therefore, the correct answer is B. The inet.0 route table will be imported into the ispi.inet.0 route table.
References:
1: Routing Instances Overview 2: Virtual Routing Instances : [rib-group (Routing Options)]
NEW QUESTION # 43

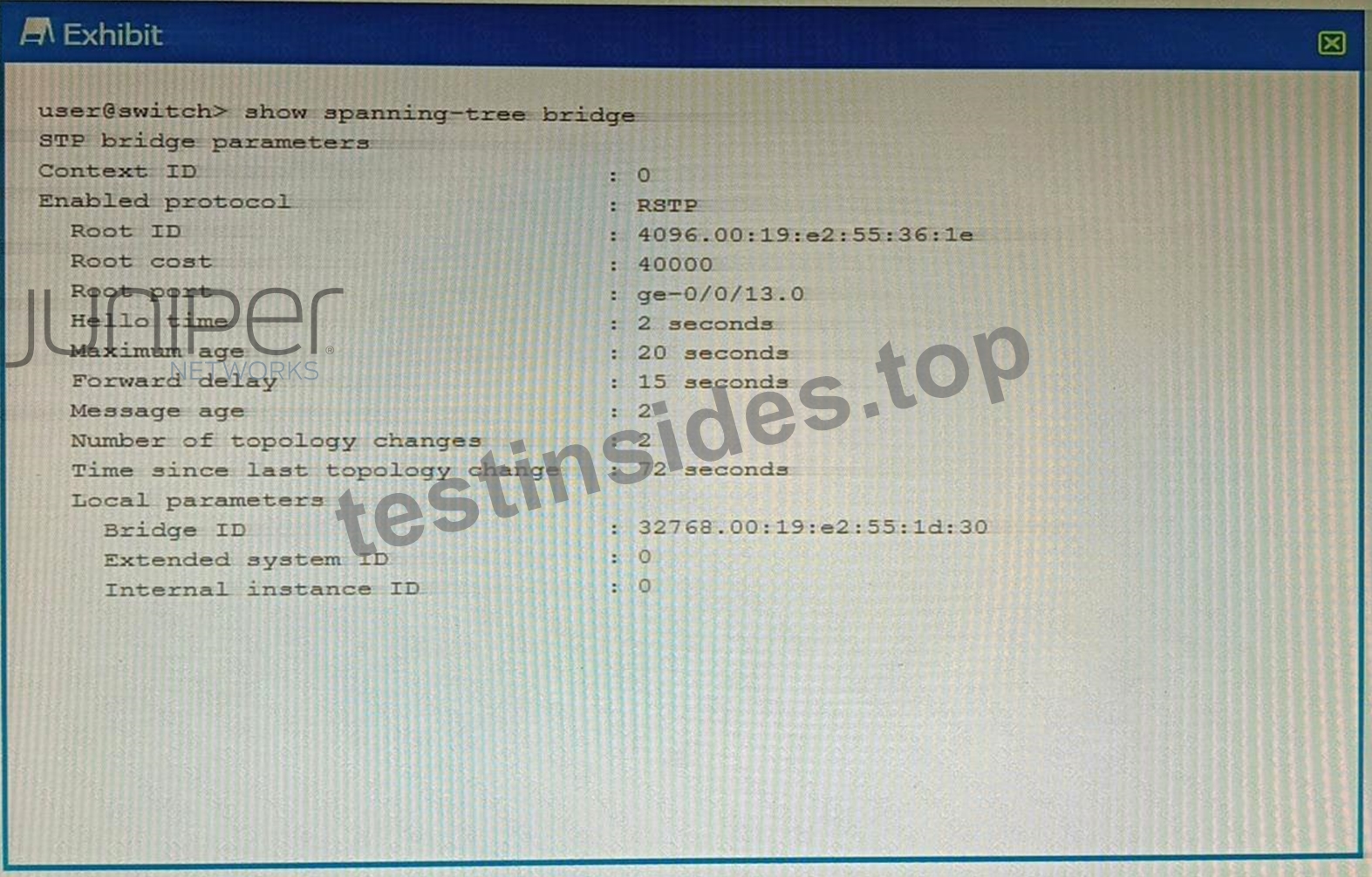

Exhibit
Referring to the exhibit, which statement is correct?
- A. The root bridge has not been elected for this RSTP topology.
- B. The root bridge is using a bridge priority of 4k.
- C. The local device is using a bridge priority of 4k.
- D. The local device is the root bridge for this RSTP topology.
Answer: D
Explanation:
Explanation
In a Rapid Spanning Tree Protocol (RSTP) topology, the root bridge is determined by the switch with the lowest bridge priority value12. If all switches have the same priority, then the root bridge is assigned to the switch whose MAC address's hex value is the lowest2. The default bridge priority value is 3276832. However, without the actual exhibit, it's difficult to definitively determine which device is the root bridge. But based on the options provided, if we assume that the local device has a lower bridge priority or a lower MAC address than other devices in the network, then it could be considered as the root bridge for this RSTP topology45.
NEW QUESTION # 44
What is a purpose of using a spanning tree protocol?
- A. to look up MAC addresses
- B. to tunnel Ethernet frames
- C. to route IP packets
- D. to eliminate broadcast storms
Answer: D
Explanation:
A broadcast storm is a network condition where a large number of broadcast packets are sent and received by multiple devices, causing congestion and performance degradation1. A broadcast storm can occur when there are loops in the network topology, meaning that there are multiple paths between two devices2.
A spanning tree protocol is a network protocol that prevents loops from being formed when switches or bridges are interconnected via multiple paths. It does this by creating a logical tree structure that spans all the devices in the network, and disabling or blocking the links that are not part of the tree, leaving a single active path between any two devices3.
By eliminating loops, a spanning tree protocol also eliminates broadcast storms, as broadcast packets will not be forwarded endlessly along the looped paths. Instead, broadcast packets will be sent only along the tree structure, reaching each device once and avoiding congestion3.
NEW QUESTION # 45

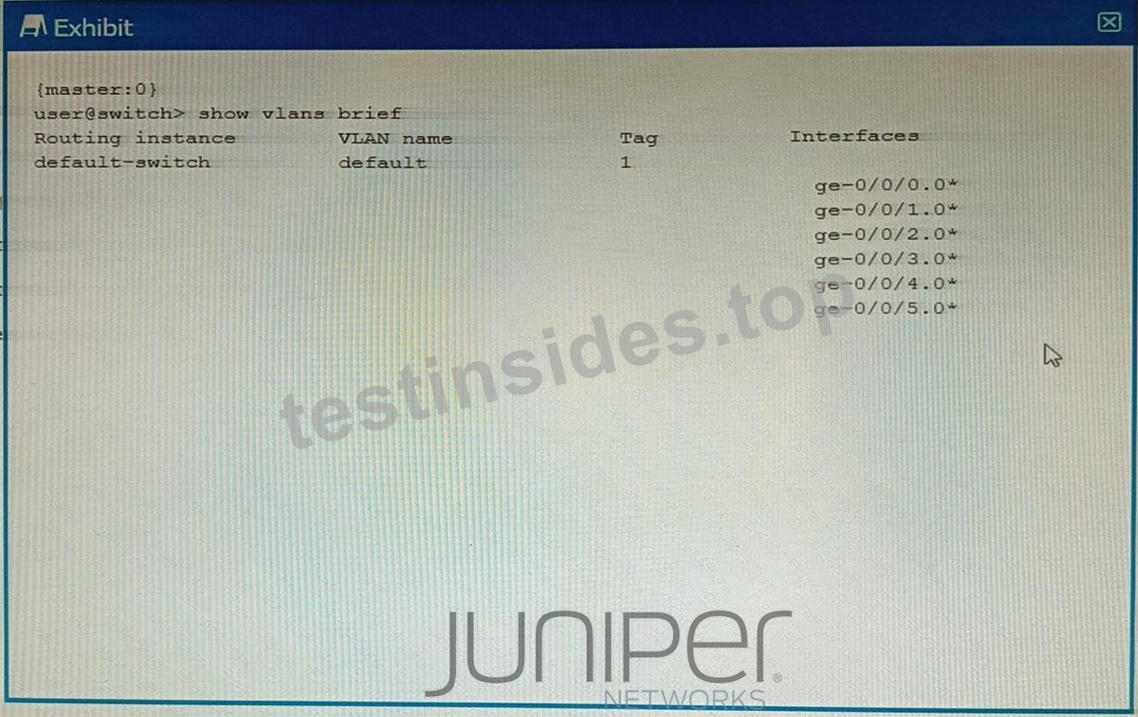

Exhibit
What does the * indicate in the output shown in the exhibit?
- A. All interfaces have elected a root bridge.
- B. The interface is active.
- C. The switch ports have a router attached.
- D. The interface is down.
Answer: B
Explanation:
The exhibit shows the output of the command show vlans brief, which displays brief information about VLANs and their associated interfaces1.
The output has four columns: Routing instance, VLAN name, Interfaces, and Tagging.
The * symbol indicates that the interface is active, meaning that it is up and forwarding traffic1. This can be verified by the command , which displays the status of the interfaces2.
NEW QUESTION # 46

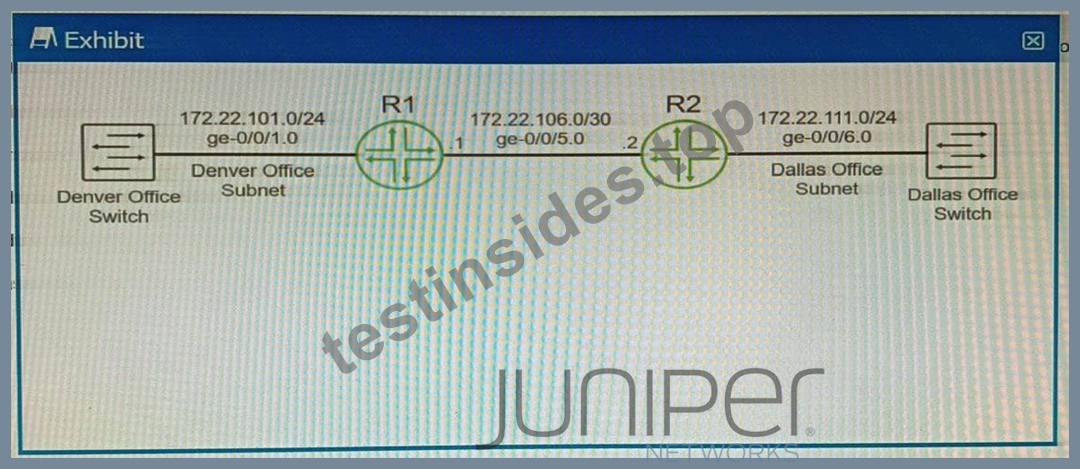

Exhibit.
You are using OSPF to advertise the subnets that are used by the Denver and Dallas offices. The routers that are directly connected to the Dallas and Denver subnets are not advertising the connected subnets.
Referring to the exhibit, which two statements are correct? (Choose two.)
- A. Configure and apply a routing policy that redistributes the Dallas and Denver subnets using Type 5 LSAs.
- B. Configure and apply a routing policy that redistributes the connected Dallas and Denver subnets.
- C. Enable the passive option on the OSPF interfaces that are connected to the Dallas and Denver subnets.
- D. Create static routes on the switches using the local vMX router's loopback interface for the next hop.
Answer: B,C
Explanation:
Explanation
The routers that are directly connected to the Dallas and Denver subnets are not advertising the connected subnets. This can be resolved by redistributing the connected subnets into OSPF1.
Option C suggests to configure and apply a routing policy that redistributes the connected Dallas and Denver subnets. This is correct because redistribution allows routes from one routing protocol to be communicated to another, and in this case, it allows the connected subnets to be advertised through OSPF1.
Option D suggests enabling the passive option on the OSPF interfaces that are connected to the Dallas and Denver subnets. This is also correct because in OSPF, a passive interface is an interface that belongs to the OSPF router, but does not send OSPF Hello packets1. It's typically used on an interface that you don't want to use for OSPF adjacencies, but you still want to advertise its IP address1. Therefore, enabling passive interface can help in advertising the Dallas and Denver subnets.
NEW QUESTION # 47
Which statement is correct about IP-IP tunnels?
- A. There are 24 bytes of overhead with IP-IP encapsulation.
- B. IP-IP tunnels only support encapsulating IP traffic.
- C. The TTL in the inner packet is decremented during transit to the tunnel endpoint.
- D. IP-IP tunnels only support encapsulating non-IP traffic.
Answer: B
Explanation:
Explanation
IP-IP tunnels are a type of tunnels that use IP as both the encapsulating and encapsulated protocol. IP-IP tunnels are simple and easy to configure, but they do not provide any security or authentication features. IP-IP tunnels only support encapsulating IP traffic, which means that the payload of the inner packet must be an IP packet. IP-IP tunnels cannot encapsulate non-IP traffic, such as Ethernet frames or MPLS labels1.
Option A is correct, because IP-IP tunnels only support encapsulating IP traffic. Option B is incorrect, because IP-IP tunnels only support encapsulating non-IP traffic. Option C is incorrect, because the TTL in the inner packet is not decremented during transit to the tunnel endpoint. The TTL in the outer packet is decremented by each router along the path, but the TTL in the inner packet is preserved until it reaches the tunnel endpoint2.
Option D is incorrect, because there are 20 bytes of overhead with IP-IP encapsulation. The overhead consists of the header of the outer packet, which has a fixed size of 20 bytes for IPv43.
References:
1: IP-IP Tunneling 2: What is tunneling? | Tunneling in networking 3: IPv4 - Header
NEW QUESTION # 48

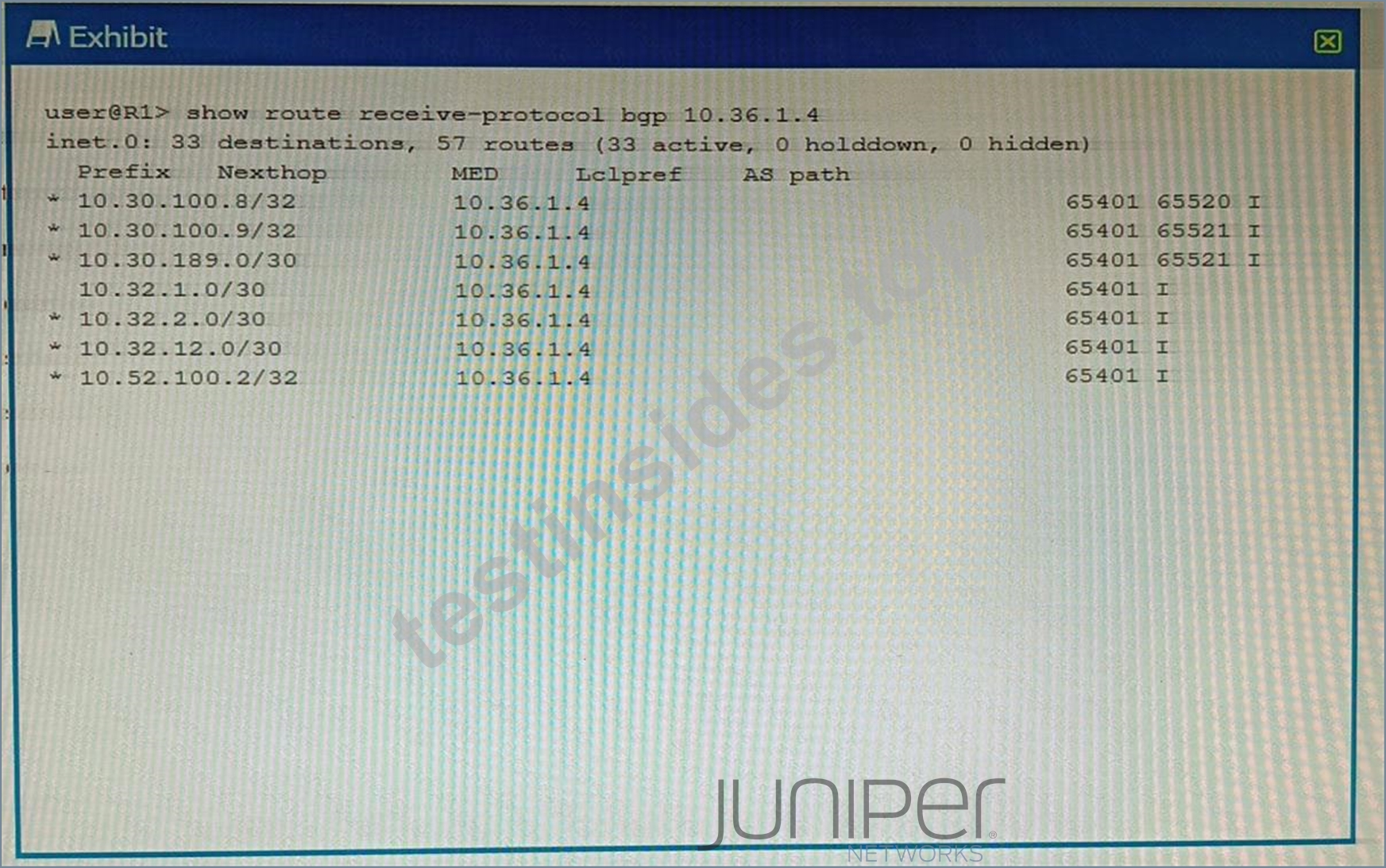

Exhibit.
You want to verify prefix information being sent from 10.36.1.4.
Which two statements are correct about the output shown in the exhibit? (Choose two.)
- A. The routes displayed have traversed one or more autonomous systems.
- B. The routes displayed are being learned from an I BGP peer.
- C. The output shows routes that are active and rejected by an import policy.
- D. The output shows routes that were received prior to the application of any BGP import policies.
Answer: A,D
Explanation:
Explanation
The output shown in the exhibit is the result of the command "show ip bgp neighbor 10.36.1.4 received-routes", which displays all received routes (both accepted and rejected) from the specified neighbor.
Option A is correct, because the routes displayed have traversed one or more autonomous systems. This can be seen from the AS_PATH attribute, which shows the sequence of AS numbers that the route has passed through. For example, the route 10.0.0.0/8 has an AS_PATH of 65001 65002, which means that it has traversed AS 65001 and AS 65002 before reaching the local router.
Option B is correct, because the output shows routes that were received prior to the application of any BGP import policies. This can be seen from the fact that some routes have a status code of "r", which means that they are rejected by an import policy. The"received-routes" keyword shows the routes coming from a given neighbor before the inbound policy has been applied. To see the routes after the inbound policy has been applied, the "routes" keyword should be used instead.
Option C is incorrect, because the output does not show routes that are active and rejected by an import policy.
The status code of "r" means that the route is rejected by an import policy, but it does not mean that it is active. The status code of ">" means that the route is active and selected as the best path. None of the routes in the output have both ">" and "r" status codes.
Option D is incorrect, because the routes displayed are not being learned from an IBGP peer. An IBGP peer is a BGP neighbor that belongs to the same AS as the local router. The output shows that the neighbor 10.36.1.4 has a remote AS of 65001, which is different from the local AS of 65002. Therefore, the neighbor is an EBGP peer, not an IBGP peer.
NEW QUESTION # 49
......
New Juniper JN0-351 Dumps & Questions: https://www.testinsides.top/JN0-351-dumps-review.html
100% Latest Most updated JN0-351 Questions and Answers: https://drive.google.com/open?id=1r2A-6QBIWQHsD20EcKkealCiTDM_vaPe
